hammer mill
High-quality hammer mill suitable for crushing a wide variety of raw materials.
Capacity: 2-25 T/H
Guiding price: 5000-40000 USD
SFSP Series Water-drop Hammer Mill we produce is used by large and medium-sized livestock, poultry and aquatic feed enterprises to crush raw material; It is also suitable for fine crushing in the pharmaceutical industry.
It can crush all kinds of granular materials, such as corn, sorghum, wheat, beans, crushed cake and other materials.
This high efficiency hammer mill is more suitable for fine crushing of raw materials.
+86 150 9316 3243
RICHI MACHINERY
How Does The Hammer Mill Work?
The material to be crushed is fed into the hammer mill through the top of the hammer mill. After entering the crushing chamber, the material is gradually crushed by the impact of the high-speed rotating hammer and the friction of the screen. It passes through the sieve holes under the action of centrifugal force and airflow and is discharged from the discharge port of the base.
The hammer mill can be equipped with a negative pressure ventilation system as needed to help the crusher unload, save the motor energy consumption of hammer mill, and increase the capacity of hammer mill.
The whole hammer mill uses SKF bearings and is equipped with Siemens motors. High-quality components can improve the working efficiency of the hammer mill and extend its service life.
RICHI MACHINERY
Advantages of Hammer Mill
Adopt frequency conversion impeller feeder. The frequency of the feeder changes in real time according to the amount of raw materials in the crushing chamber, which can make the crusher work fully and efficiently;
Advanced teardrop-shaped crushing chamber design, reasonable secondary crushing structure, the output can be increased by 25% compared with other models;
The rotor on the grinder is tested by our own dynamic balancer to ensure that the centrifugal force error is less than 5 grams when the rotor rotates 360 degrees;
The arrangement of the hammers has been fully optimized, making the micro-crushing performance reach a new high; and the hammers of the crusher can rotate forward and reverse, and can be used alternately to make both sides of the hammers wear evenly;
Equipped with safety interlocking device to protect personal safety and also protect the crusher, making it more convenient for workers to operate;
The hammer mill is equipped with a Siemens motor, which has good quality and stable speed, allowing the hammer mill to achieve a better crushing effect.
RICHI MACHINERY
Hammer Mill Parameters
The models and capacity of the common hammer mills we produce are as follows:
| Model | SFSP56*40 | SFSP66*60 | SFSP66*80 | SFSP66*100 | SFSP138*30E | SFSP138*40E | |||
| Rotor Dia.（mm） | 560 | 660 | 660 | 660 | 1380 | 1380 | |||
| crushing chamber （mm）width | 400 | 600 | 800 | 1000 | 300 | 400 | |||
| Rotating Speed（rpm） | 2980 | 2980 | 2980 | 2980 | 1440 | 1440 | |||
| Line speed of hammers（m/s） | 88 | 103 | 103 | 103 | 103 | 103 | |||
| Power （kw） | 30 | 37 | 55 | 75 | 90 | 110 | 132 | 110/132 | 132/160 |
| Capacity（T/H | 3~5 | 4~6 | 5~8 | 6~9 | 8~10 | 10~13 | 12~16 | 15~20 | 18~25 |
RICHI MACHINERY
Several common types of hammer mills
SFSP56*40 Hammer Mill
Capacity:
4~6 t/h
Main Power:
37kw
SFSP66*60 Hammer mill
Capacity:
5~8 t/h
Main Power:
55 kw
SFSP66*60 Hammer mill
Capacity:
6~9 t/h
Main Power:
75 kw
SFSP66*80 Hammer mill
Capacity:
10~13 t/h
Main Power:
110 kw
RICHI MACHINERY
Hammer Mill Can Be Customized
As the main equipment in the pre-processing stage of feed production, we can customize the design and production of hammer mills that meet the customer’s production needs based on the customer’s raw materials and production needs.
If you have special requirements for crushing, such as special raw materials, output, special crushing chamber width requirements, we can customize the crusher for you according to your requirements.
RICHI MACHINERY
Why Do Raw Materials Need To Be Crushed?
Whether in the production process of poultry feed, livestock feed, or in the production process of extruded aquatic feed, there is generally a crushing section, which requires a crusher to crush the raw materials, and the crushing pellet size will directly affect the quality of the finished feed pellet.
There are mainly the following reasons:
01 Increasing the surface area and particle size of feed is beneficial to animal digestion and absorption.
The seed coat of grain raw materials, such as corn, wheat, and soybeans, is very hard. If they are directly fed to livestock and poultry, it is difficult for their digestive juices to penetrate. After crushing, the seed coat of the grain is torn, and the internal nutrients are exposed, making the feed contact area larger, which is more conducive to the infiltration of livestock and poultry digestive juices, thereby improving the digestion and absorption rate of livestock and poultry for feed;
02 The production scale of the poultry feed mill
If the scale of feBy crushing, the pellet size of the materials can be basically consistent, reducing the classification of materials after mixing. For trace elements and some small component materials, only by crushing them to a certain degree to ensure that there are enough pellet can the mixing uniformity requirements be met. For example, for the pelleting process, the pellet size of the crushed material must consider the interaction between the crushed particle size and the pellet feed. The crushed pellet size will affect the durability of the pellets and the stability of the aquatic feed in water.
03 The production scale of the poultry feed mill
If the scale of fThe pellet size of the crushed feed can significantly improve the feed conversion rate, reduce the amount of animal feces excretion, improve the animal’s utilization of feed, and improve the efficiency and quality of subsequent feed mixing, conditioning, granulation, puffing and other processing.
RICHI MACHINERY
Application of Hammer Mill
High-quality hammer mill is an indispensable equipment in the feed production process. The hammer mill developed by RICHI is widely used in various aquatic feed pellet mill and poultry feed mill due to its high efficiency, good crushing performance and wide adaptability.
Hammer mill in animal feed mill
We can provide 1-20 tons of crushing machine and 1-100 tons turnkey projects for animal feed pellet mill.
Hammer mill in fish feed pellet mill
We can provide hammer mills and ultrafine grinders for fish feed mill to meet the production needs of fish feed, as well as 1-50 tons turnkey fish feed production lines.
Hammer mill in shrimp feed pellet mill
1-20 tons per hour hammer mill specially designed and developed for shrimp feed pellet mill.
Can’t Find The Hammer Mill You Want?
Contact Us To Customize For You!
RICHI MACHINERY
other Related Crushing Equipment
As As a professional manufacturer of feed production equipment and pellet production equipment, we can not only provide SFSP model hammer mill, but also meet the crushing needs of various materials, such as forage, wood chips, wood, etc. Suitable crushing equipment can be equipped according to specific crushing needs.
Grass crusher
It is mainly used to crush grass raw materials such as forage, grass, alfalfa, and crop waste such as straw. According to the characteristics of these raw materials, the crusher is equipped with a forced feeding device to achieve a better crushing effect.
Wood chip crusher
Thin wood chips can be crushed into wood chips. Compared with feed hammer mill, wood chip crushers do not need to be equipped with variable frequency impeller feeders, but need to be equipped with thicker screens and use smaller power motors.
Wood chipper
Using a wood chipper can cut the logs into wood chips of about 3 cm, which is convenient for subsequent crushing and other processing needs. Integrated equipment, simple operation, very convenient to use. Commonly used in wood processing plants.
Small capacity grass crusher
Suitable for poultry, livestock, ruminant This forage crusher does not have a forced feeder and can meet the crushing needs of small production volumes below 1 ton per hour. It has a power of 37 kilowatts and is suitable for small-scale crushing production.
RICHI MACHINERY
You May Also Like
The crushing section is a relatively important section in the entire feed production process. In addition to the crushing section, the complete feed production process also includes a mixing section, a granulation or puffing section, a cooling section, a screening section, a packaging section, etc.

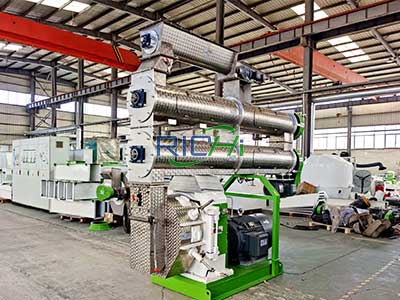

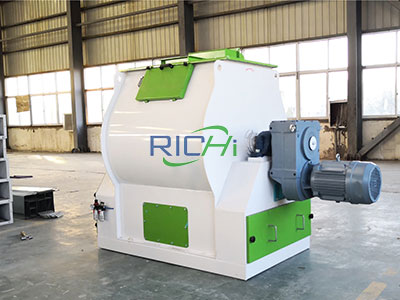

Therefore, the entire feed production process requires not only a hammer mill, but also feed mixer, feed pellet machine , feed extruder, feed cooler, feed dryer machine, packing equipment, etc.
As professional feed production equipment manufacturer, RICHI can provide a full set of feed production machine to meet the production needs of every customer.
