Completed Cases
1t/h floating fish feed and 1-2t/h animal feed combined line
Project Name
Floating Fish And Animal Feed Pellet Line
Country
Uzbekistan
Capacity
1-2 tons per hour
Application
Fish feed, chicken, cattle, sheep and other animal feed
RICHI MACHINERY
Project Introduction
The fish feed production project is located in Uzbekistan. It is a compound feed pellet line, which is mainly used to produce floating fish feed and animal feed for chickens, cattle, sheep, etc. This feed pellet production line can produce 1 ton of floating fish feed per hour or 1-2 tons of animal feed per hour.
Based on the local market conditions, the customer saw that the local demand for fish feed was constantly increasing, and the quality requirements for fish feed were also constantly improving. He believed that fish feed had a relatively large market and good prospects, so he decided to invest in this field.
The customer didn’t know much about fish feed pellet machine, so he decided to build a 1 ton per hour floating fish feed pellet line at the beginning.
Since the customer knew too little about fish feed pellet machine, after communicating with us for a period of time, he decided to visit our factory to see the equipment. After visiting our factory and communicating with us face to face, he decided to cooperate with us.
And after the on-site investigation, we found that we have rich experience in the field of feed pellet machine, so we decided to build a compound floating fish feed and animal feed pellet line.
The feed pellet line is currently operating normally.
RICHI MACHINERY
Finished Pellet
The main raw materials used in this feed pellet line are soybeans, wheat bran, soybean meal, fish meal, and premixes. In addition, there are some oils, vitamins, additives and other substances that need to be added to the feed.
These raw materials can be used to produce 1-8mm extruded fish feed and 2-12mm animal feed pellets through this compound feed pellet line.
Trout
Sturgeon
Chicken
Cattle
Fish feed pellet
Fish feed
Chicken Feed Pellets
Cattle Feed Pellets
RICHI MACHINERY
Process of Feed Pellet Line

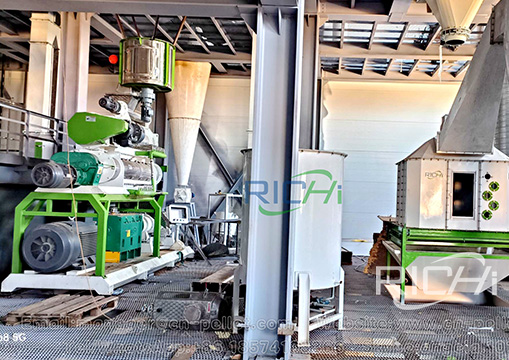

This feed pellet line is semi-automatic integrated feed pellet line. Since it is used to produce both floating fish feed and animal feed pellets, both feed extruders and feed pelletizers are used in this production line.
The entire feed pellet line mainly includes the following sections:
Crushing System
Mixing System
Extrusion System
Pelleting System
Cooling System
Packing System
01
Crushing System
After cleaning and impurity removal, The raw materials for producing animal feed only need to be crushed once, but the production of floating fish feed requires a higher particle size of the raw materials, which requires two crushings. The fineness of the crushed material is about 1mm.
RICHI
02
Mixing System
The crushed materials and premixes, vitamins, additives, etc. are evenly mixed in the mixer. The mixing time is about three minutes, and the mixing time can be adjusted according to the different raw materials.The mixed materials are sent to the extrusion bin or pelleting bin.
RICHI
03
Extrusion System
The production of floating fish feed requires feed extruder, which has single-screw extruders and twin-screw extruders. After comprehensive consideration, the customer decided to use single-screw extruder. After extrusion, the feed pellet can float on the water surface for a long time.
RICHI
04

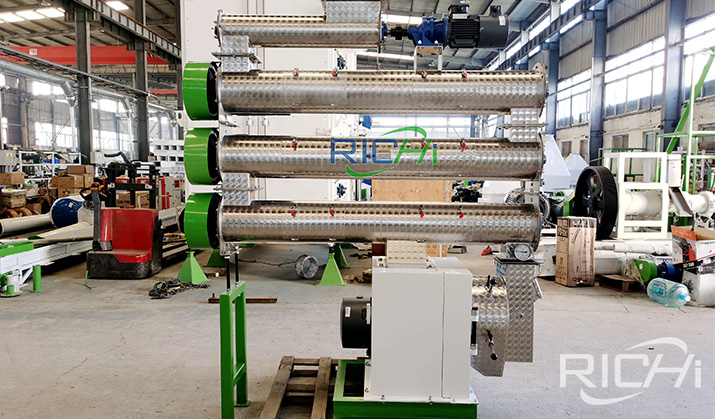

Pelleting System
Feed pellet mill is needed to produce cylindrical feed pellet that meets the growth needs of chickens, cattle, sheep and other animals. The capacity of 1-2 tons of feed pellet line is not large, so it is equipped with a small feed pellet mill.
RICHI
05
Cooling System
Whether it is the feed coming out of the extruder or the pellet mill, the temperature is relatively high, especially the feed coming out of the extruder. Therefore, considering the rapid cooling of the pellets, a cooler is equipped.
RICHI
06
Packing System
The processed feed pellets can be packaged into 10-50 kg bags of feed according to sales needs through the packaging machine. Customers can greatly save manpower by choosing to use automatic packaging machines.
RICHI
This feed pellet production project started investment and construction in 2019. After completion, the feed pellets produced have been quite ideal, and customers have always had a good relationship with us.
Nowadays, with the development of aquaculture, the requirements for aquatic feed are also increasing. The customer later purchased a spraying machine to increase the oil content of floating fish feed to meet the energy needs of fish growth.
And currently customers are discussing with us plans to expand feed production capacity.
Production Process of Machine in The Workshop
This is a customized compound feed pellet production line. The equipment on the entire feed production line began production after the contract was signed.
The production cycle of this fish feed and animal feed pellet production line is 45 days. After the customer confirms the plan and signs the contract, our factory will develop a detailed production plan to ensure that the equipment can be produced within the agreed time.
During the 45-day production process, we will regularly send customers pictures and videos of the finished feed pellet eqipment or some semi-finished feed pellet production equipment so that customers can understand the entire production process of the equipment they purchased.
RICHI MACHINERY
Delivery and Installation
Delivery
After all the feed pellet production equipment is produced within 45 days, we will ship it according to the delivery time communicated with the customer in advance.
Delivery is a very important step. We have a complete delivery Shipping is a very important link. We have a complete delivery process, and our equipment has been exported to more than 100 countries and regions in the world. So no matter where your project is built, we can ensure that the equipment is delivered to your project location.
Installation

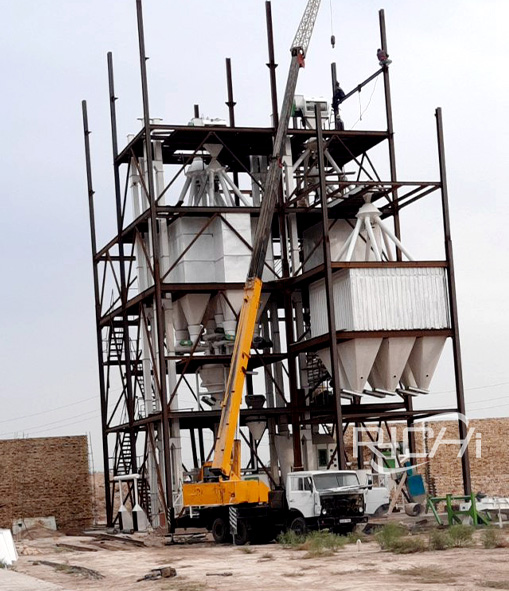

After all the feed pellet production equipment was delivered to the customer’s feed pellet production project site, we sent two engineers to the feed production pellet project site to provide installation guidance.
After the installation was completed, training and guidance was provided to the staff of the fish feed pellet mill.
RICHI MACHINERY
After-sales Service
The warranty period of this compound fish feed and animal feed pellet production line is one year. If any problems occur with our equipment within one year, we will do our best to help customers solve them as soon as possible.
We provide permanent online service, that is, if the customer’s feed pellet production equipment encounters any problems in the subsequent operation process, they can contact us at any time. And if various accessories are needed in the future, we will provide customers with various original accessories.
We have a professional after-sales team, and the customer was very satisfied with our after-sales service. So when he was preparing to expand the capacity of the feed pellet mill, he thought of us first and hoped to continue cooperating with us.
RICHI MACHINERY
Why choose us?
Customized Design
According to the customer’s site, production and other needs, our professional engineers have designed more than ten solutions, constantly improved the drawings, modified the process, added special designs, etc., and finally customized a solution that fully meets the customer’s production needs.
Rich experience
Our company was founded in 1995 and has nearly 30 years of production experience in the feed machinery industry. Whether it is a single feed production machine or complete turnkey feed production project, we can provide perfect feed production solutions.
Professional service team
From early stage communication, to solution design, to equipment production and after-sales service, we have a team with very complete service, and every member of the team is doing their best to complete this project.
Competitive strength
We have a production workshop of more than 30,000 square meters, and customers can visit our factory at any time. At present, our equipment has been exported to more than 120 countries and regions all over the world, and customer satisfaction is very high.
RICHI MACHINERY
What feed processing solutions can we provide?
We can design and build complete feed pellet production lines and turnkey feed pellet mills with capacity of 1-100 tons per hour for all types of aquatic organisms and animals.
Aquatic feed production line
Floating feed, slow sinking feed, sinking feed……
Pet food production line
Cat, dog, turtle, fox……
Livestock feed production line
Cow, sheep, pig, horse……
Poultry feed production line
Chicken, duck, goose……
